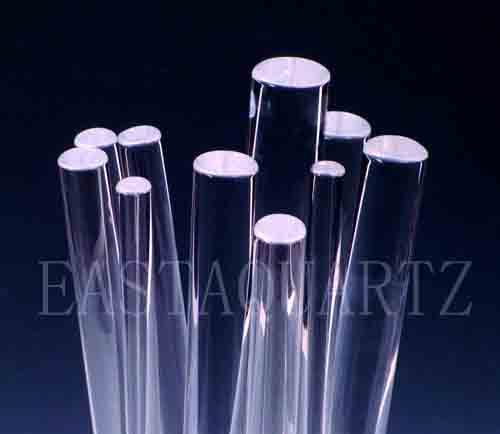

石英棒

石英棒

分享
  • 产品详情
  • 产品参数

100系列

连续熔融方法可采用不同特性的原料生产外观、尺寸均佳的透明石英管及透明石英棒，并可通过热处理调整OH值,可用 于汞灯、卤素灯等电光源石英灯制作，电加热外管，半导体制品材料、光纤基础管等。
　　此方法同样可以生产乳白石英管(EQ-U100系列)。用于红外加热灯等。

EQ_100 Series
    This is generalproduct manufactured by continuous drawing and continuous drawing method can use differentcharacteristics of the raw material to produce good appearance and dimensionclear quartz tube and clear quartz rod. OH content can be adjusted by heattreatment. This kind of product can be used for mercury lamp, halogen lamp electricheater, semiconductor materials, optical fiber parts and other applications.

Wealso use this production method to produce opaque quartz tube (EQ-U100 series)which is used for infrared quartz heaters outer tube etc.

EQ-100化学成分分析（参考值）

EQ-100 Chemical element composition (Typical data）                                    ppm


AL

Fe

K

Li

Cu

Na

B

Ca

Mg

P

Ti

OH

EQ-100
   EQ-101

17.00

1.60

3.80

0.74

0.10

1.80

0.02

1.70

1.50

---

2.08

150
   20

EQ-110
   EQ-111

14.00

0.20

0.70

0.40

0.07

0.66

0.02

0.13

0.33

---

1.11

120
   15

EQ-U100
   EQ-U101

45.00

1.00

2.50

1.50

0.15

5.00

---

1.50

0.75

---

---

---

可根据用途或客户要求提供不同OH值含量的产品。

OH content different with detail using and customer requirements.
